Bent Manufacturing

  Call for Pricing/Ordering  Minimum Order 10

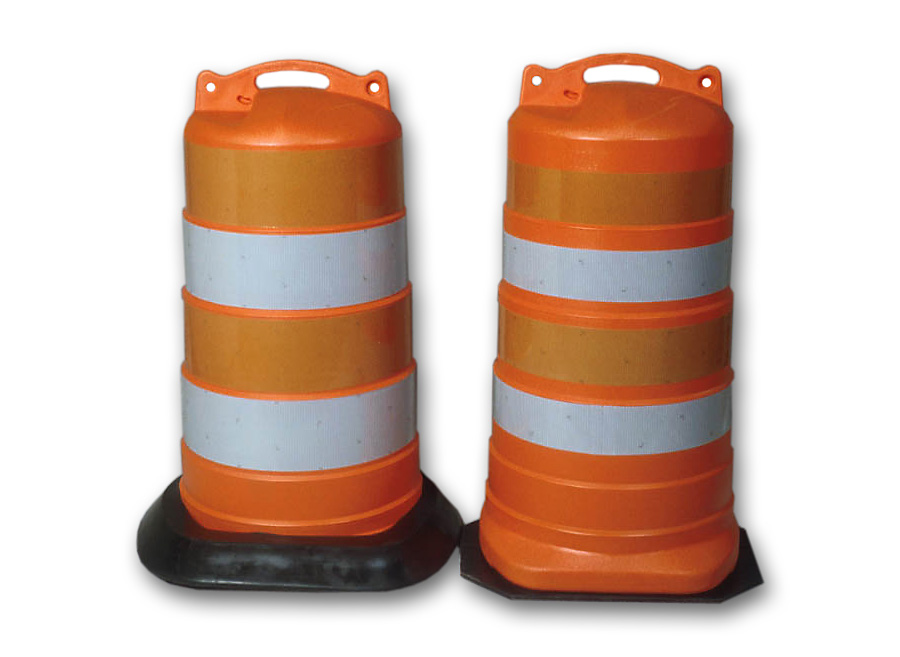

Superdome Drums and Bases





Superdome Drums
  • Double (one on each side) flag mount holes with pre-molded stops for all-purpose flagging situations.
  • Enlarged arch carry handle allows gloved workers easy, comfortable and secure grip.

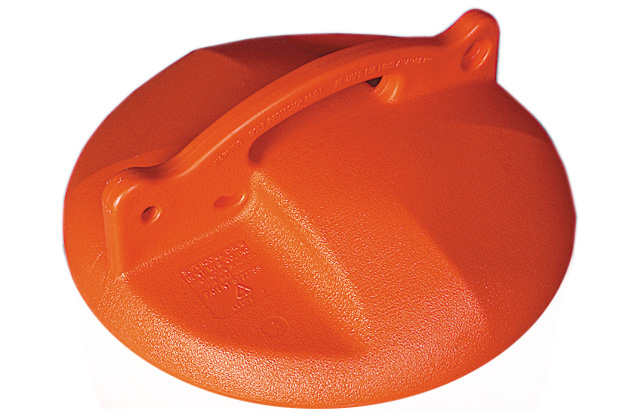

  • Ribbed dome top for increased target value and superior structural strength.

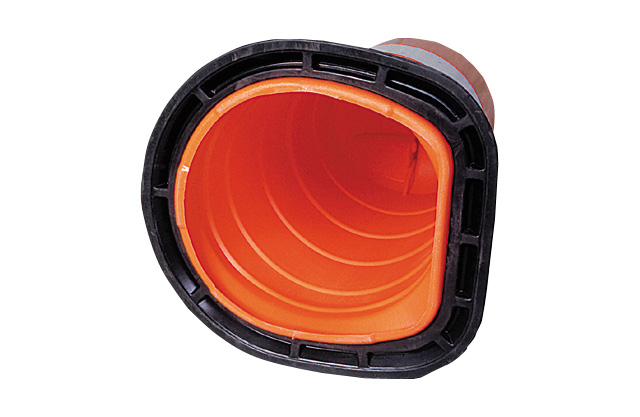

  • High gravity molded rubber base hugs the road as if it were "glued down."
  • Recessed reflective band tiers, maximum width 6". Accommodates USA MUTCD 2" maximum spacing specifications.
  • Two pre-molded light mounts are designed for standard size bolt and cup washers.
  • Rounded dome top discourages any dangerous debris or rocks to collect on top of drum.
  • Tested and certified to meet the crashworthy requirements of NCHRP-350.














SPECIFICATIONS
Drum Materials Low or high density polyethylene
Color Cad. Orange
Drum Weight LDPE (12 lbs.), HDPE (10 lbs.)
Drum Height Base of drum to bottom of dome - 36"
(meets Fed. MUTCD VI Section 6F-5e)
Base of drum to top of dome - 39"
Base of drum to top of handle - 41 1/2"
Drum Diameter 18" minimum (meets Fed. MUTCD Part VI, Section 6F-5e)
Reflectivity H.I. / E.G. / D.G.
Reflective Band Size 4" / 6"
Light Brackets 2 each
Flag Brackets 2 each
OPTIONAL BASE SPECIFICATIONS
Base Material Molded rubber snap-on base Drop over base (natural bio-degradable materials or molded rubber) Drop over base (blow-molded polyethylene plastic, sand fillable) Sand filled snap-on (LDPE / HDPE) Sand bag snap-on base (LDPE / HDPE)
Base Weight 25, 30, 40 lbs. 28 lbs. 3 1/2 lbs. (empty) to 40 lbs. filled 4 to 40 lbs. 2 1/2 lbs.
Base Height 2.8" 3.25" 3.5" 3.5" 3.5"
Base Diameter 24" 26" 26" 24" 24"
Base Color Black Natural/Black Black / Cad. Orange Cad. Orange Cad. Orange
All specifications and descriptions are subject to change without notification.
Patent No. 5,722,788 & Patent No. 6,019,542
